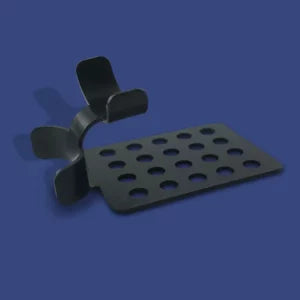

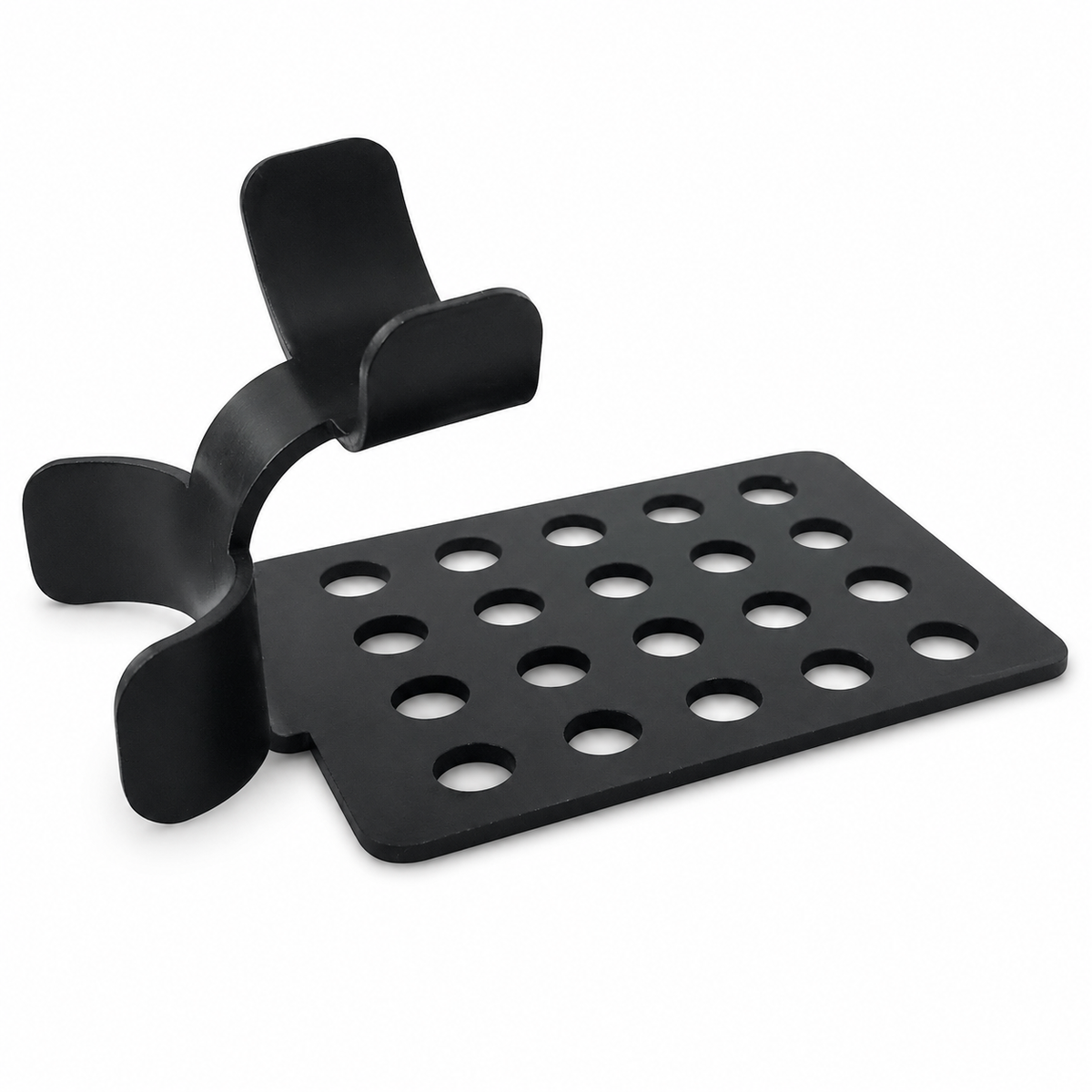

Nail-On Heat Cable Roof Clips

Overview

Radiant Solutions' version of the industry-standard nail-on heat cable clip, made from aluminum with a black anodized finish that blends in with most roofs. Fasten the clip to the roof and it holds the cable firmly through storms and wind.

• Black anodized 5052 aluminum, non-corrosive

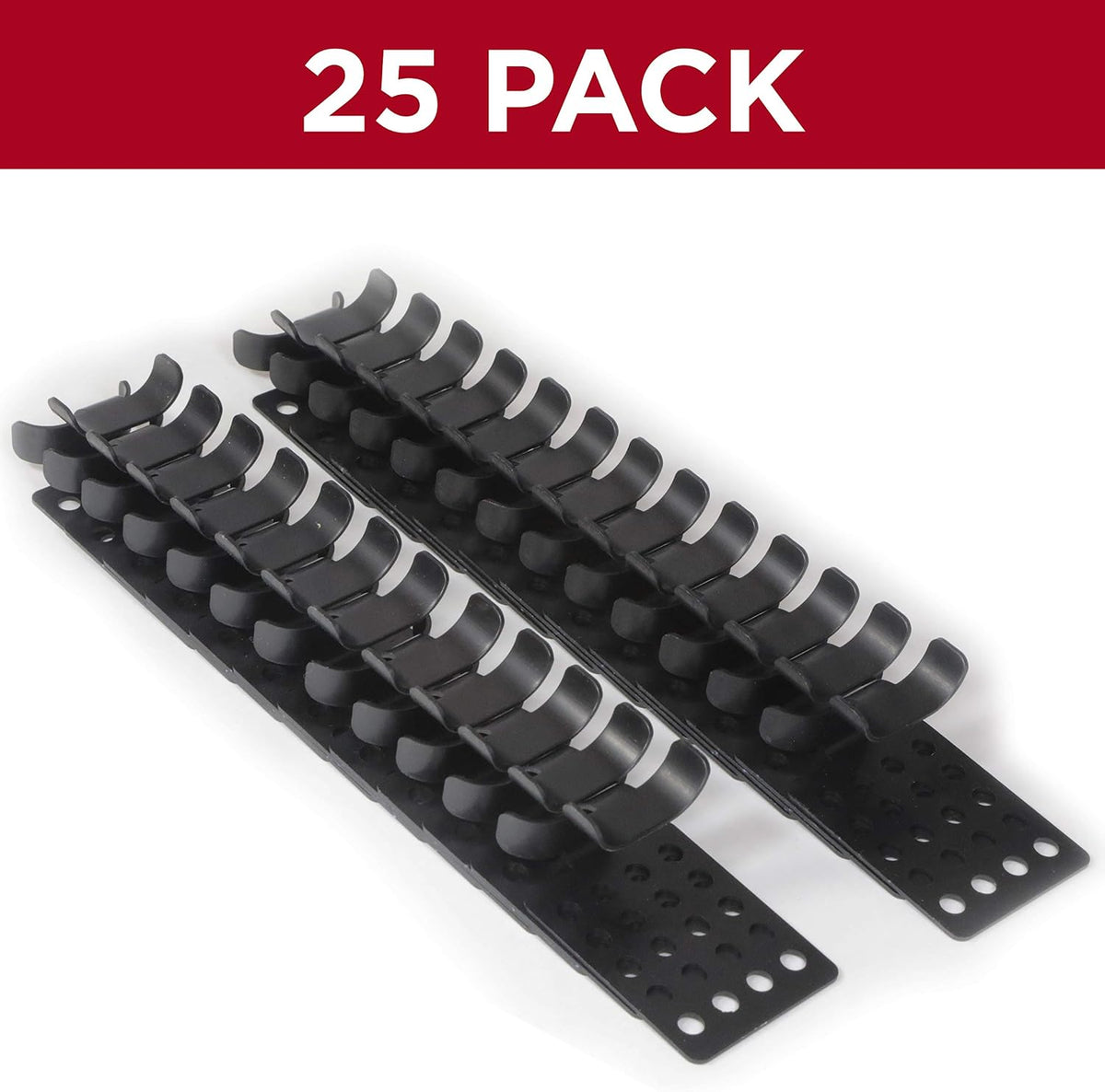

• Boxes of 25 or 50 clips
• Requires fasteners (nails, screws or adhesive); seal penetrations with butyl pads or roofing sealant
• For asphalt shingles and cedar shakes; not recommended for metal roofs
• Fits self-regulating and constant-wattage cable 5 to 6 mm x 8 to 13 mm
• Install one clip every 24 in., plus two at the bottom of each valley

Need a clip that does not require fasteners? See the GripClip 325.

Specifications

Part number	IDP-113
Applications	Roof & Gutter De-Icing
Compatibility	Asphalt shingle and cedar shake roofs Self-regulating or constant-wattage cable 5 to 6 mm x 8 to 13 mm

Documentation

• Installation Manual (PDF)

Technical documents

• Specification Sheet (PDF)

Warranty

See current RSC warranty for product-specific coverage
