S5-SR-U Universal Metal Roof Clip 10-Pack

Overview

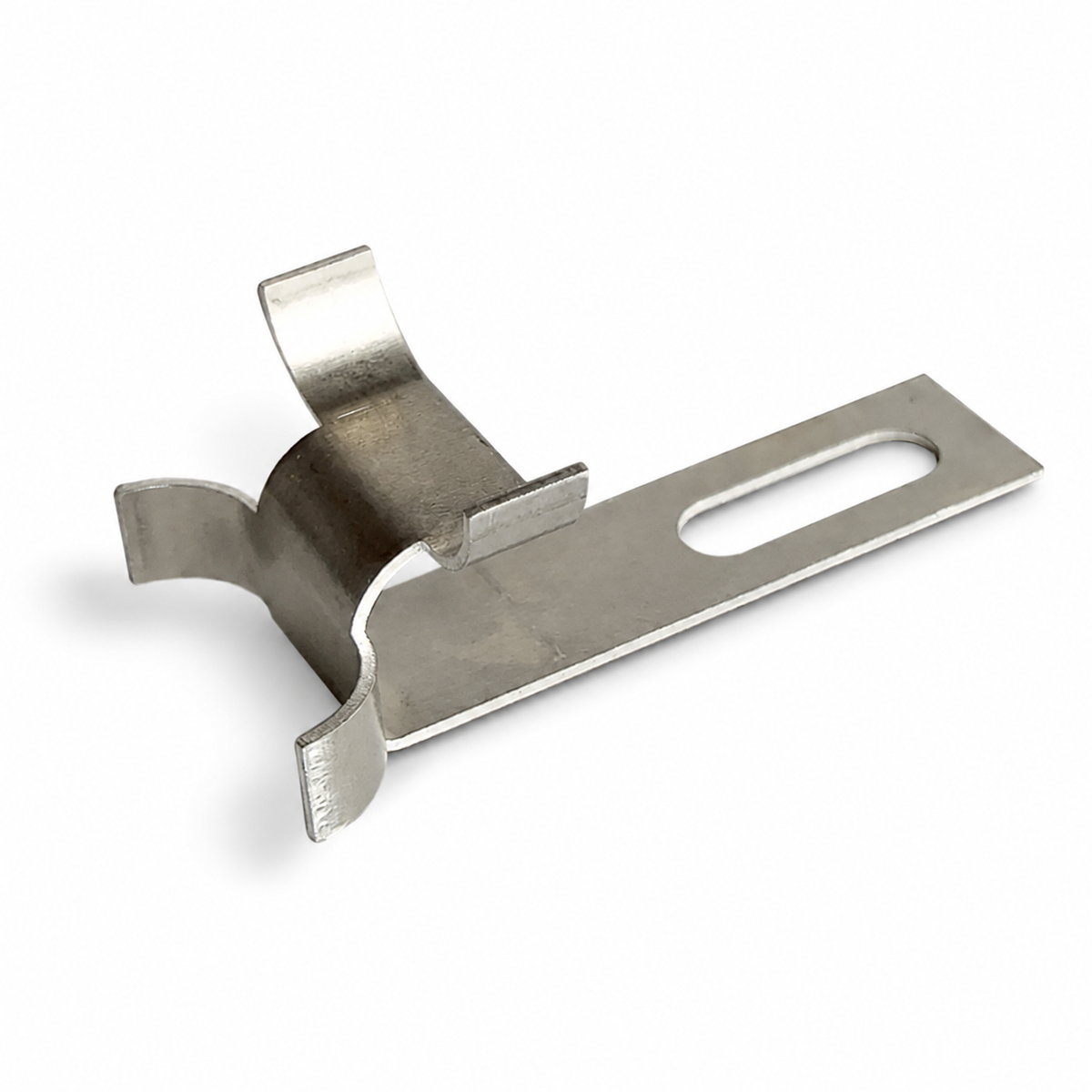

The S5-SR-U is a universal heat cable clip for standing seam metal roofs. Its slotted mount gives more positioning options, so it works on more S-5 clamp profiles than the standard S5-SR. Attach the clips to the S-5 base clamps before placing the clamps on the roof, then lay in the cable.

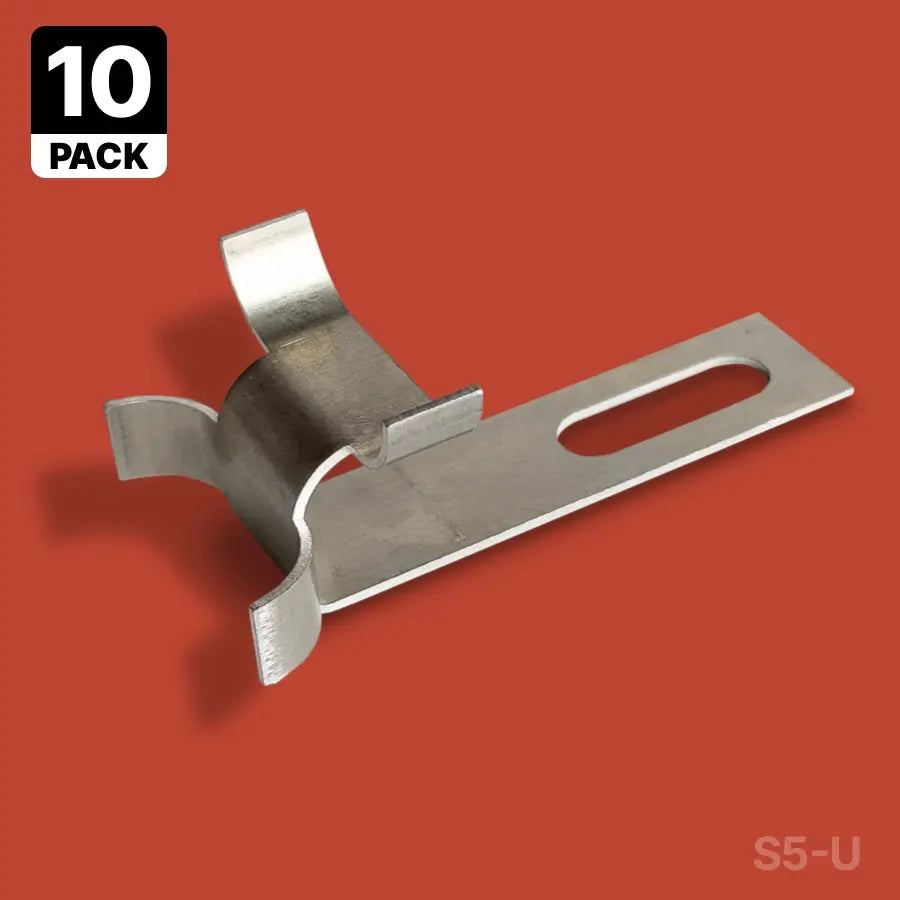

• Pack of 10 clips

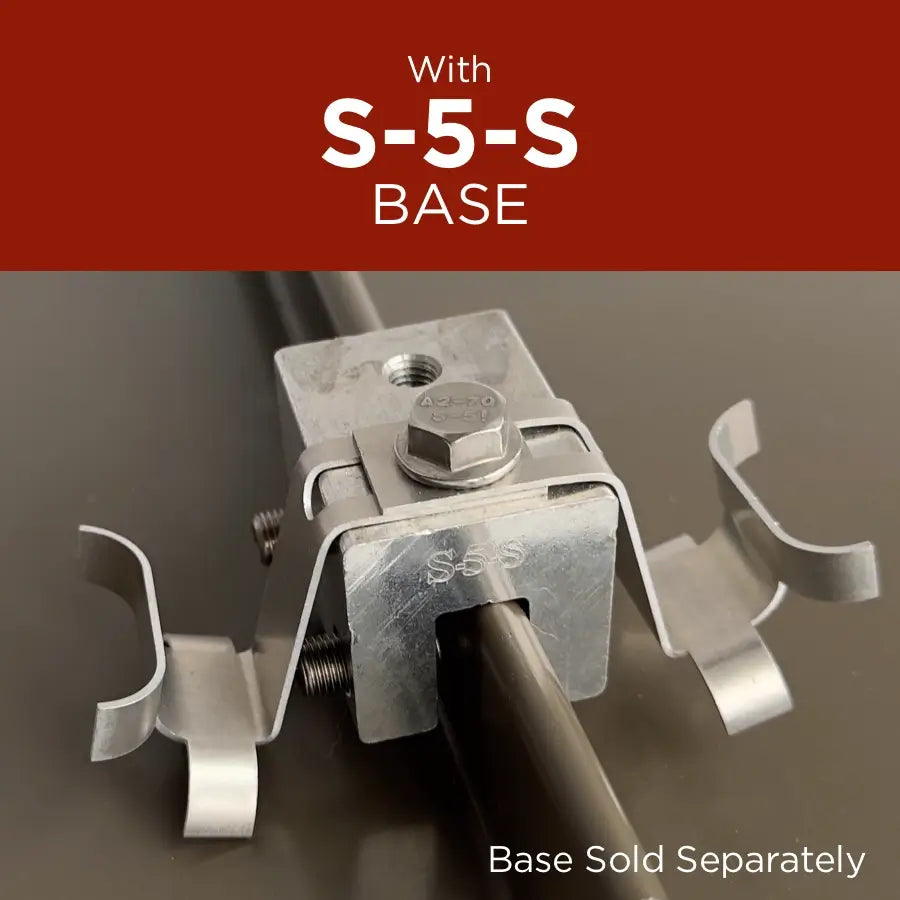

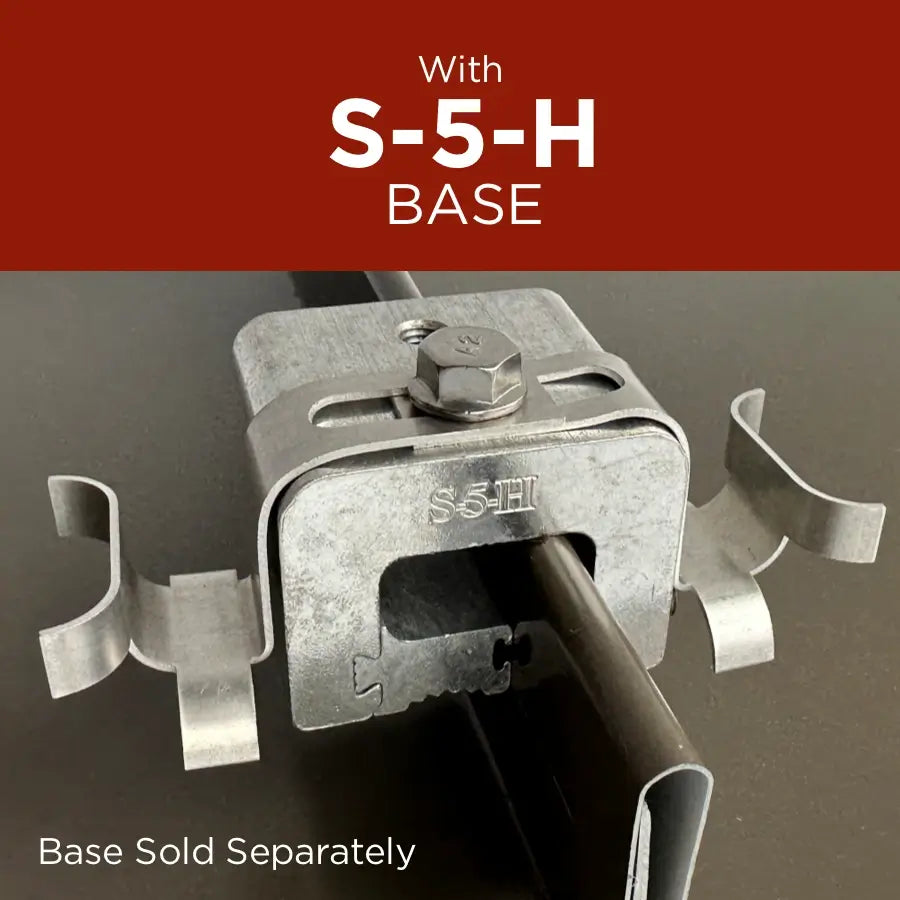

• Requires an S-5 base clamp (not included): S-5-S, S-5-N, S-5-E or other M8 bases

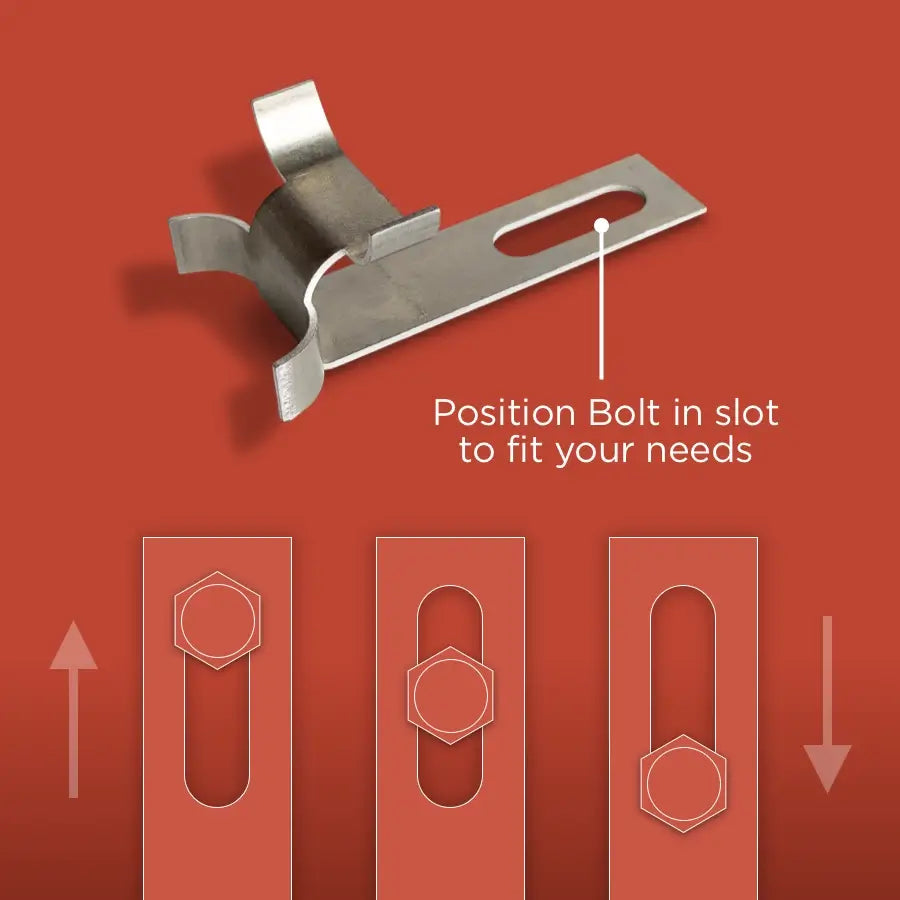

• Slotted mount opening for flexible positioning; two clips can share one clamp
• Curved cradle protects the cable from sharp metal edges
• Non-penetrating
• Fits Heat Tape PRO and other self-regulating cable 5 to 6 mm x 8 to 13 mm
• 10-year manufacturer's warranty

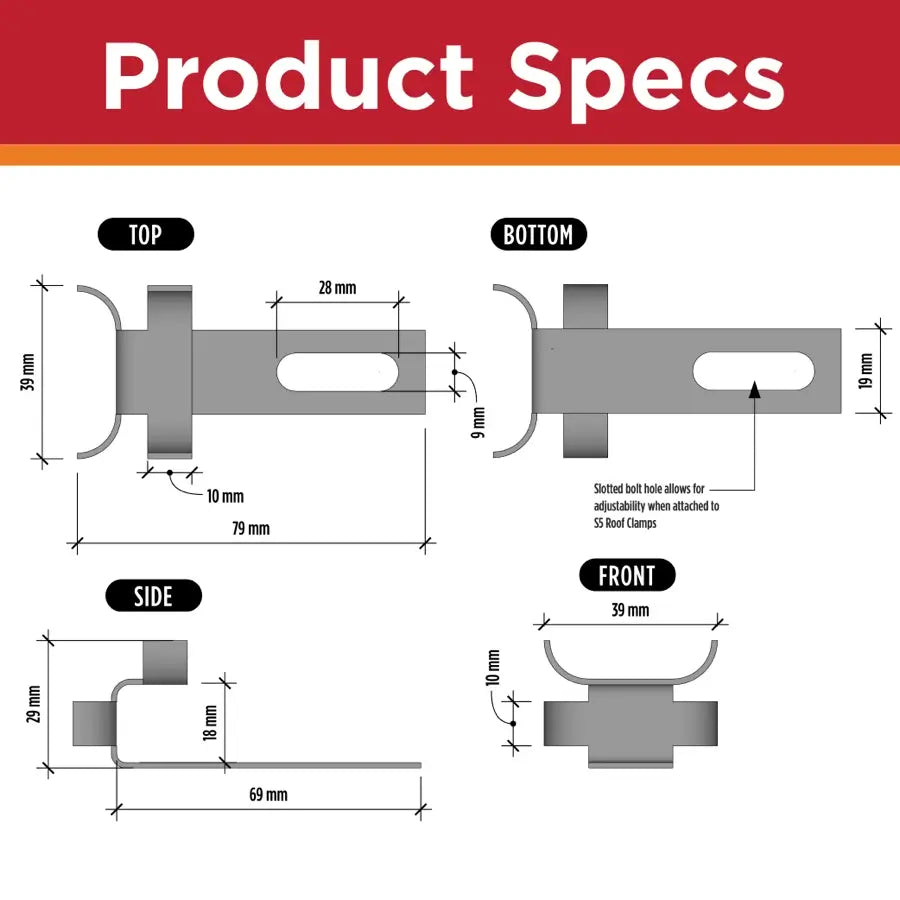

Specifications

Part number	IDP-S5-SR-U-10
Applications	Roof & Gutter De-Icing
Compatibility	S-5-S, S-5-N, S-5-E and other M8 S-5 base clamps Self-regulating cable 5 to 6 mm x 8 to 13 mm

Documentation

• Installation Manual (PDF)

Technical documents

Warranty

10-year limited warranty
