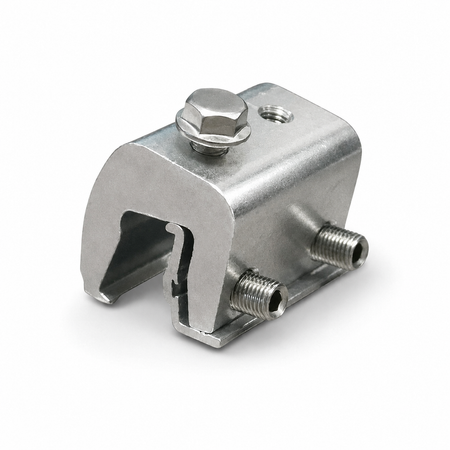

S-5N Standing Seam Clamp

Overview

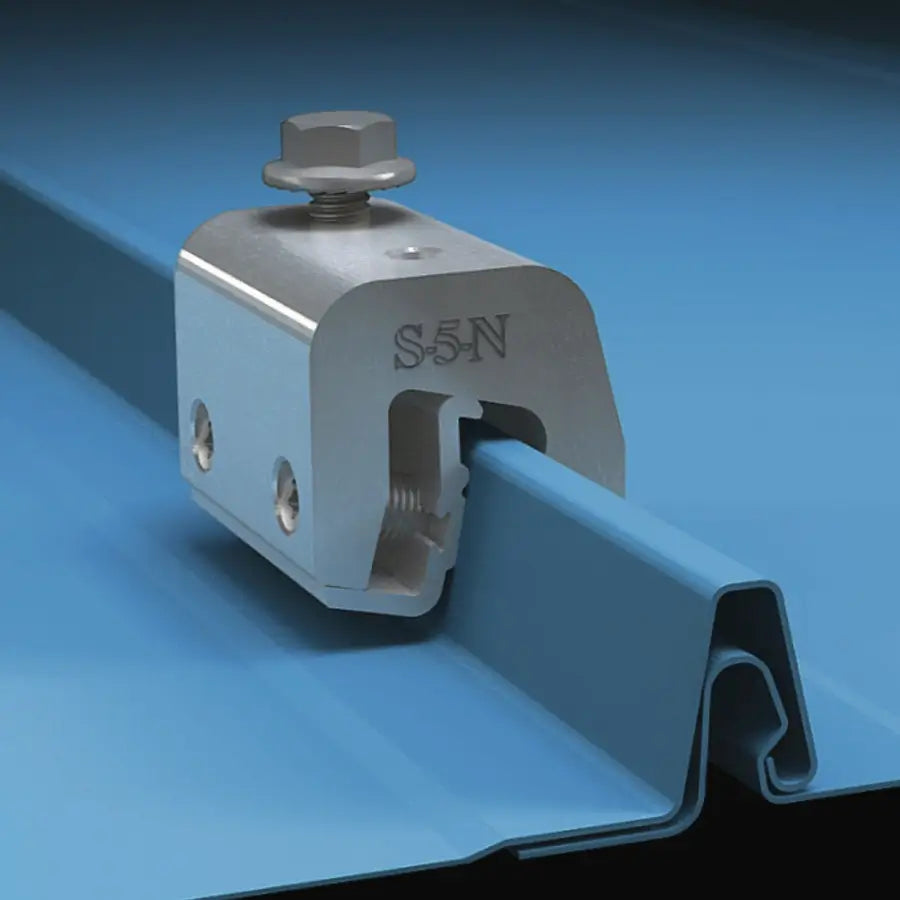

The S-5-N is a non-penetrating clamp for nail-strip standing seam roofs. Paired with the S5-SR or S5-SR-U clip, it mounts heat cable to the seam without drilling into the roof.

• Fits popular 1 in. nail-strip profiles such as Taylor Metals Easy Lock™, ASC Building Products Skyline Roofing®, McElroy Metals Meridian and New Tech Machinery FF100

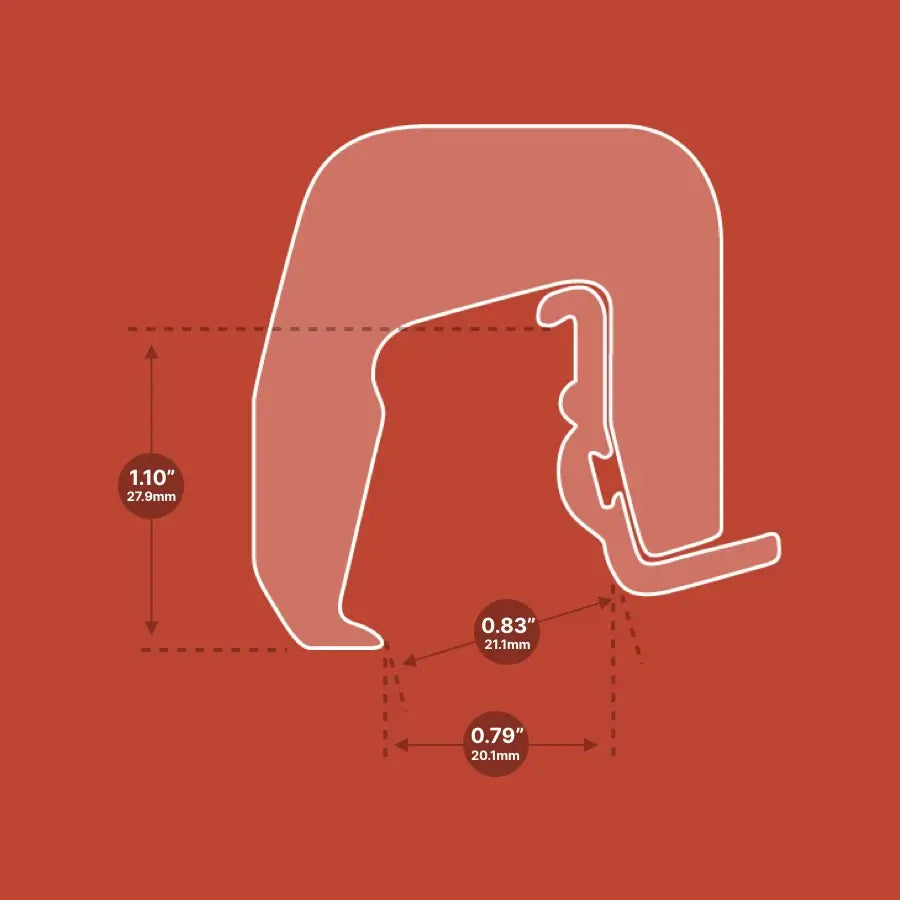

• For nail-flange profiles up to 1 in. (25 mm) tall with a rib base under 0.82 in. (20 mm)

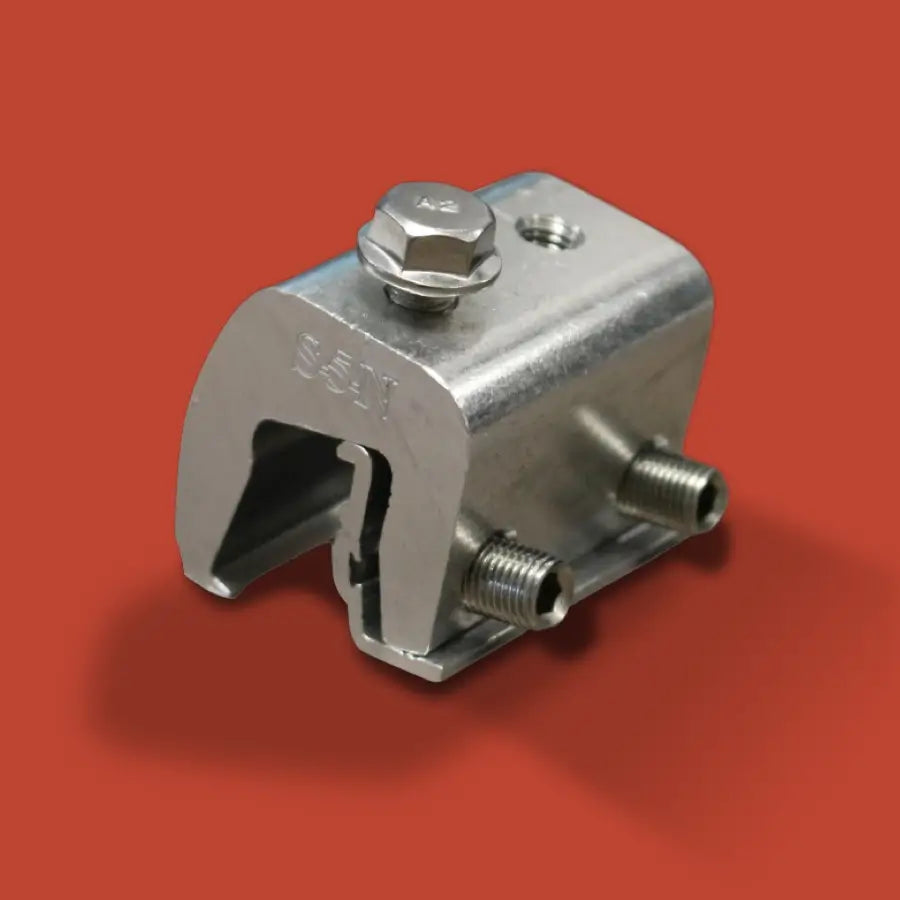

• Angled setscrews for easy installation; clamp insert protects the panel seam
• Includes two T-30 Torx round-point setscrews, a Torx bit and one M8 bolt
• Sold individually, in 5-packs and 30-packs
• Heat cable clip sold separately

Specifications

Part number	S-5-N
Applications	Roof & Gutter De-Icing
Compatibility	Nail-strip standing seam roofs up to 1 in. tall Use with S5-SR or S5-SR-U heat cable clips

Documentation

• Installation Manual (PDF)

Technical documents

Warranty

See current RSC warranty for product-specific coverage
