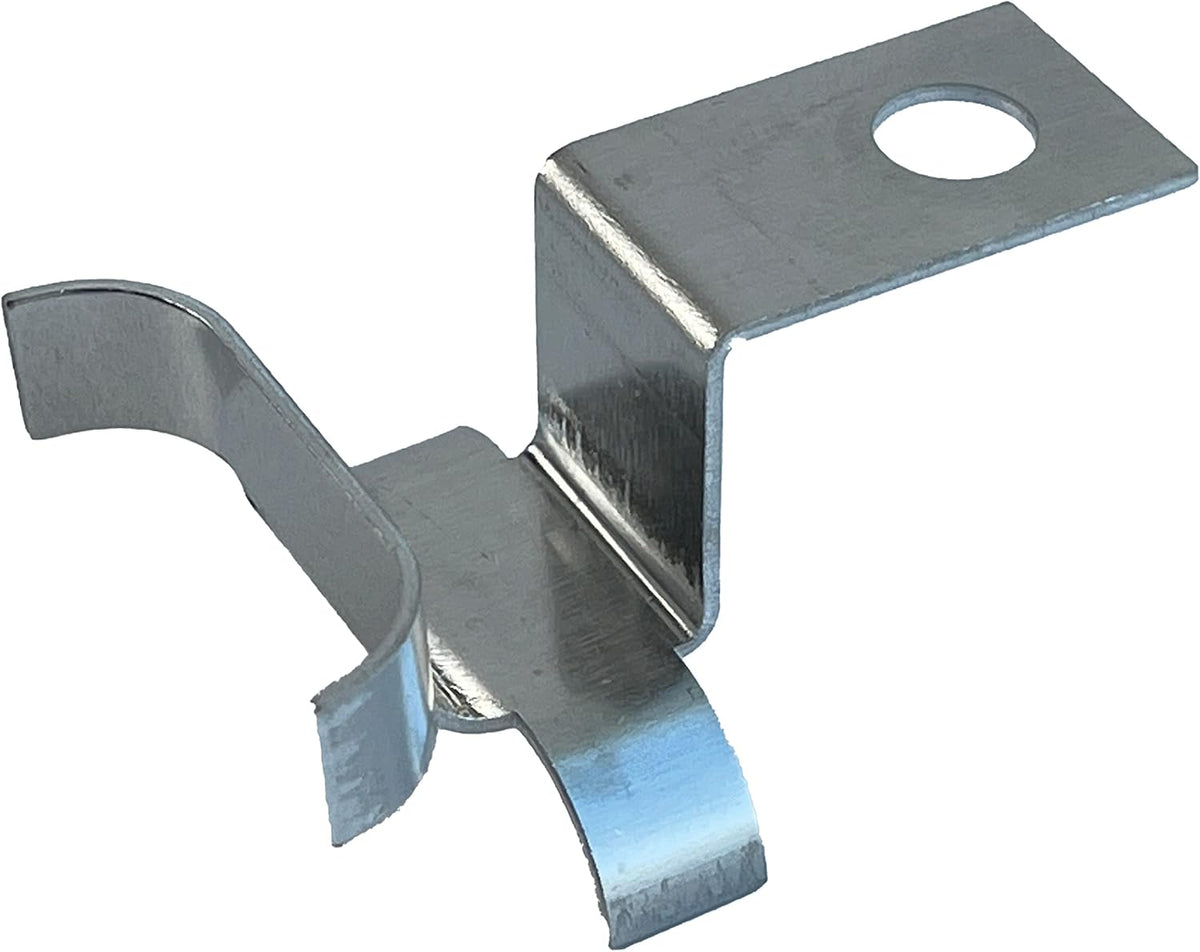

Standing Seam Metal Roof Clip S5SR (10 pack)

Overview

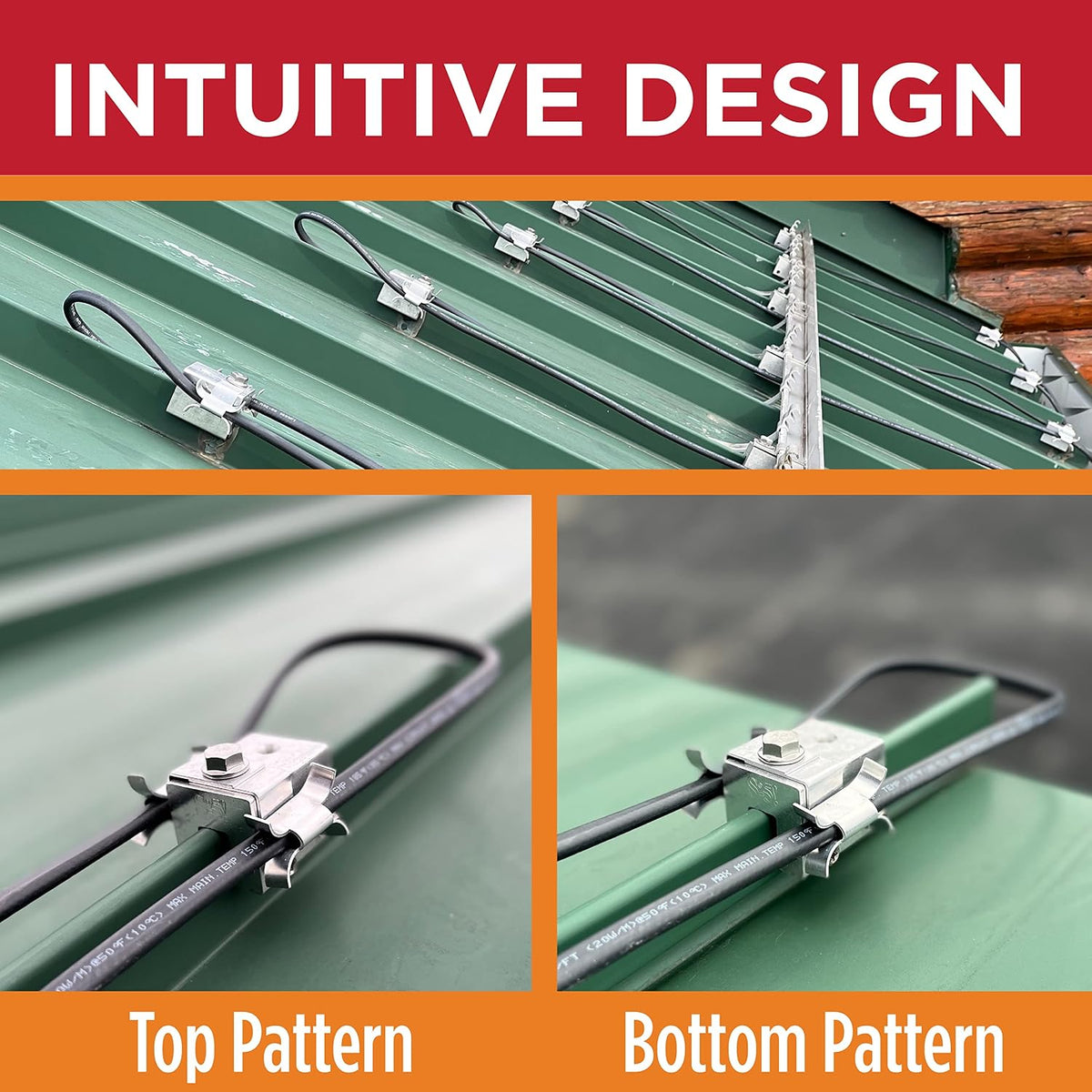

The S5-SR clip mounts heat cable to an S-5 clamp on standing seam metal roofs. It installs on the clamp before the cable goes in, so installation is about 3 times faster than other standing seam clips, and the cable can be adjusted without unscrewing hardware.

• Pack of 10 clips

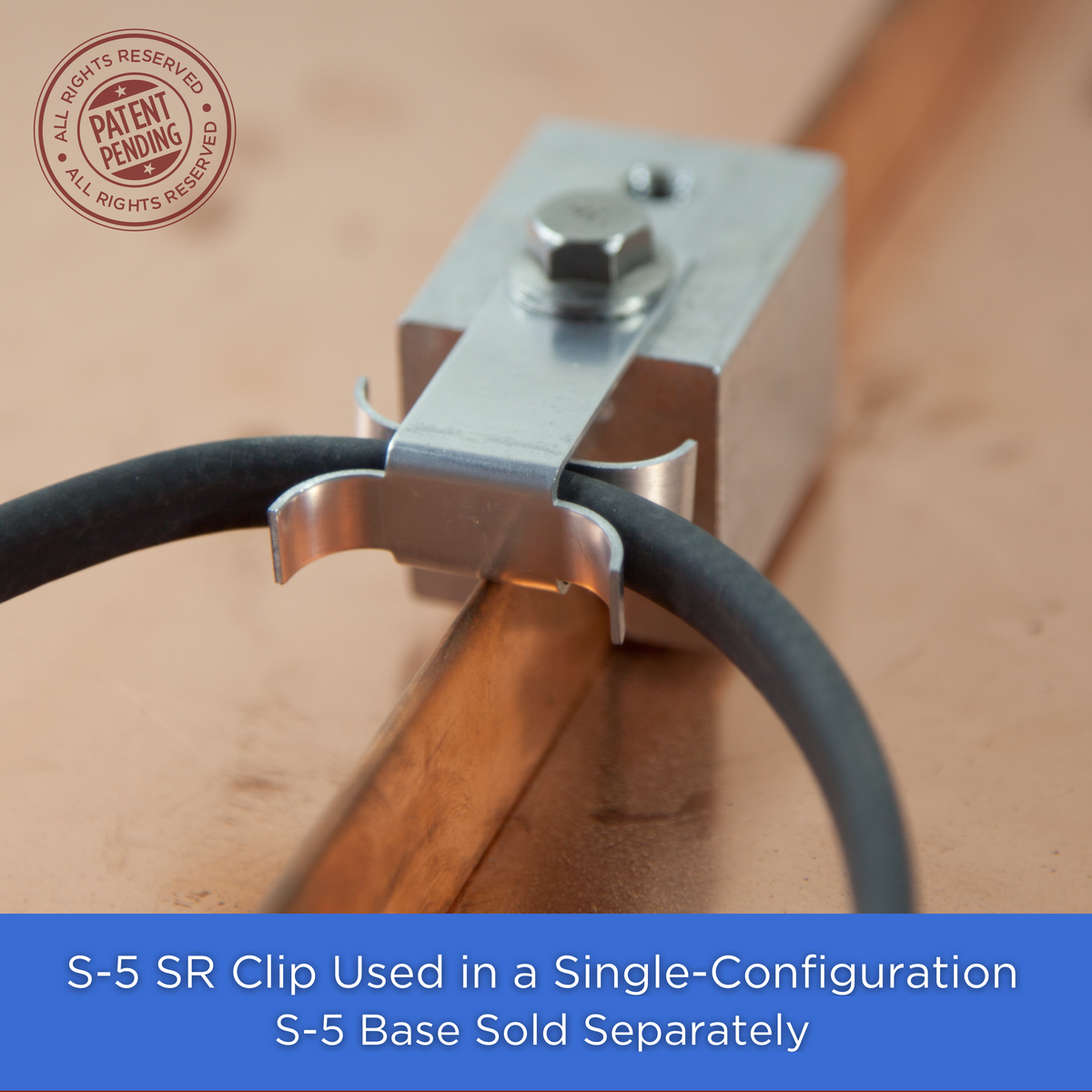

• Requires an S-5 base clamp (not included). Designed for the S-5-S; also fits the S-5-N, S-5-E and other M8 bases
• Curved cable grip protects the cable from sharp metal edges
• More than one clip can be mounted on a single base
• Fits Heat Tape PRO and other self-regulating cable 5 to 6 mm x 8 to 13 mm
• 10-year manufacturer's warranty

For other S-5 clamp profiles, the S5-SR-U universal clip may fit better.

Specifications

Part number	IDP-S5-SR-10
Applications	Roof & Gutter De-Icing
Compatibility	S-5-S (recommended), S-5-N, S-5-E and other M8 S-5 base clamps Self-regulating cable 5 to 6 mm x 8 to 13 mm

Documentation

• Installation Manual (PDF)

Technical documents

• Specification Sheet (PDF)

Warranty

10-year limited warranty
