Best Heat Tape for PEX Pipes 2026 Buyers Guide
PEX has earned its reputation as a cold tolerant plumbing material, but that reputation is often misunderstood. Yes, PEX can expand when water freezes. No, that does not mean it is immune to freeze damage. Fittings, manifolds and transitions are still rigid, and those are usually the first things to fail.
If PEX pipes are exposed to freezing temperatures, heat tape remains one of the most reliable and cost effective ways to prevent damage. The key is choosing the right type of heat tape. As with most freeze protection failures we see, the problem is not the concept. It is the product choice.
Best Overall Heat Tape for PEX Pipes
For most residential and light commercial applications, the best heat tape for PEX pipes is Heat Tape Pro from Radiant Solutions Company.
It is a self regulating heat cable that adjusts its output automatically based on temperature, making it inherently safer, more efficient and more durable than constant wattage alternatives. It can be overlapped safely, works in extreme cold and is backed by a ten year warranty.
For homeowners who want a purpose built pipe solution with built in control, Pipe Freeze Pro is also an excellent option and uses the same self regulating technology in a lower wattage format designed specifically for pipes.
Why PEX Pipes Still Need Freeze Protection
PEX is flexible, but physics still applies. When water freezes, it expands. PEX tubing can stretch to accommodate some of that expansion, but fittings, valves and connections cannot.
Most PEX freeze failures occur at:
• Brass or polymer fittings
• Shutoff valves
• Manifolds
• Transitions to copper or PVC
• Areas exposed to airflow
Heat tape prevents freezing by keeping the pipe temperature just above 32°F along the entire vulnerable run, including those critical connection points.
Common situations where PEX needs heat tape include:
• Crawl spaces and attics
• Exterior walls
• Unheated garages
• Long runs between buildings
• Seasonal or vacant homes
Self Regulating vs Constant Wattage Heat Tape
This choice matters more than most people realize.
Self Regulating Heat Tape
Self regulating heat tape uses a conductive polymer core that changes resistance as temperature changes. Colder areas draw more power. Warmer areas draw less. This adjustment happens independently along every inch of the cable.
Why that matters:
- It cannot overheat PEX
- It is safe to overlap
- It uses less electricity
- It performs in extreme cold
- It works on all pipe materials
This is the only type of heat tape we recommend for long term freeze protection.
Constant Wattage Heat Tape
Constant wattage heat tape produces the same output whenever it is on. A 7 watt cable produces 7 watts everywhere, regardless of conditions.
Limitations include:
• Always runs at full power
• Cannot be overlapped
• Higher surface temperatures
• Short warranties
• Entire cable must be replaced if damaged
These products are common at hardware stores because they are inexpensive, not because they are better.
What to Look For in Heat Tape for PEX
Power Output
PEX typically performs best with heat tape that averages between 5 and 10 watts per foot in cold conditions. Self regulating cable automatically varies output within that range as needed.
PEX Compatibility
Any cable used on PEX should be explicitly rated for plastic pipe. Quality self regulating cables operate well below temperatures that could damage PEX.
Thermostat or Control Strategy
Some pipe cables include built in thermostats. Others rely on self regulation alone or use an external controller. Either approach works when designed correctly.
Safety Certification
Look for UL or ETL listing. This is especially important for indoor installations.
Warranty Length
Warranty length is one of the best indicators of product quality.
• Budget products: 1 to 2 years
• Mid grade products: 3 to 5 years
• Professional grade products: 10 years
Top Heat Tape Options for PEX Pipes
Heat Tape Pro
Heat Tape Pro is a heavy duty self regulating cable originally developed for roof and gutter deicing, but its higher output and robust jacket make it excellent for PEX in harsh environments.
Key points:
• 6 watts per foot at moderate temps
• Increases output as temperatures drop
• Ten year warranty
• Fully repairable
• GlowCap LED confirms operation
A thermostat such as ThermaCord can be added for automatic on off control.
Pipe Freeze Pro
Pipe Freeze Pro is designed specifically for pipe protection and includes a built in thermostat.
Key points:
• 3 to 5 watts per foot
• Built in 37°F on 50°F off control
• Ten year warranty
• GlowCap LED indicator
• Ideal for residential pipe runs
WarmlyYours PRO Tect
A solid self regulating option commonly used in commercial settings.
Key points:
• Rated to extreme cold
• Sold by the foot
• Requires external control
• Good availability for large projects
Frost King HC Series
A constant wattage option widely available at retail.
Key points:
• Lower upfront cost
• Built in thermostat
• Cannot overlap
• Short warranty
• Limited long term durability
Top Heat Tape Options for PEX Pipes
Product | Type | Watts/ft | Built-in Thermostat | Warranty | Key Features |
Self-Regulating | 6-9.6 W/ft | No | 10 years | GlowCap LED indicator, commercial-grade construction, highest power output | |
Self-Regulating | 3-5 W/ft | Yes (37-50°F) | 10 years | Built-in thermostat, GlowCap LED, designed specifically for pipes | |
Self-Regulating | ~5 W/ft | No (requires controller) | Industrial grade | UL/cULus listed, sold by the foot, -40°F rated | |
Constant Wattage | 7 W/ft | Yes (38-45°F) | 1-2 years | Budget-friendly, Schedule-40 PVC rated, cannot overlap |
How Much Heat Tape Do You Need for PEX
Most PEX installations require a single straight run along the bottom of the pipe.
Basic rule:
• Measure pipe length
• Add one foot per valve
• Add distance to power source
For larger diameter plastic pipe, two parallel runs may improve performance.
Installation Guidelines for PEX
- Clean the pipe surface

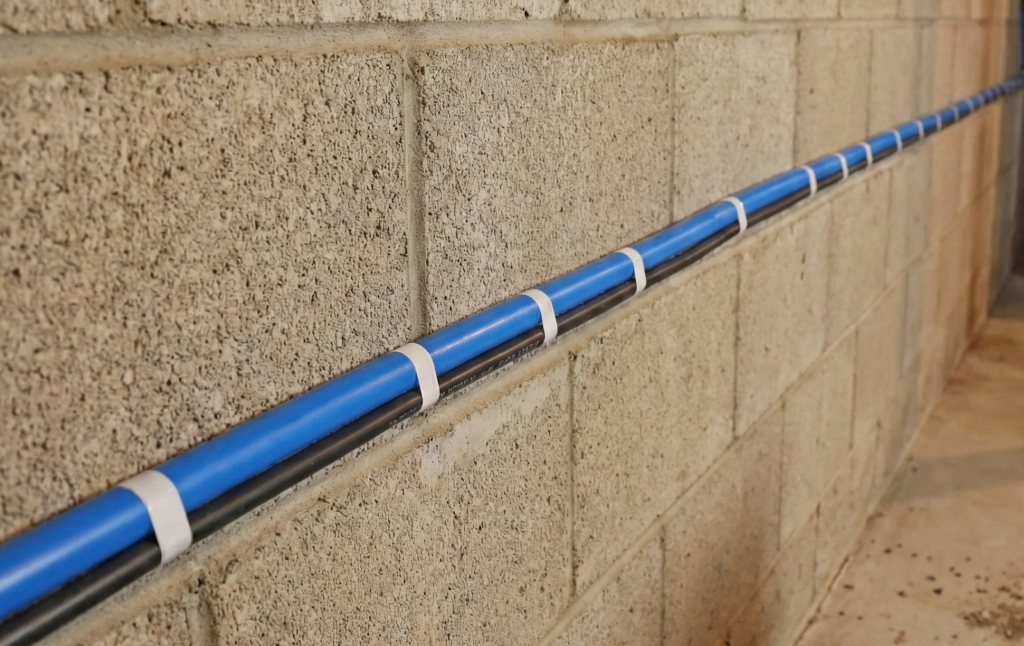

- Run cable along the bottom of the pipe
- Secure every 12 to 18 inches using fiberglass tape

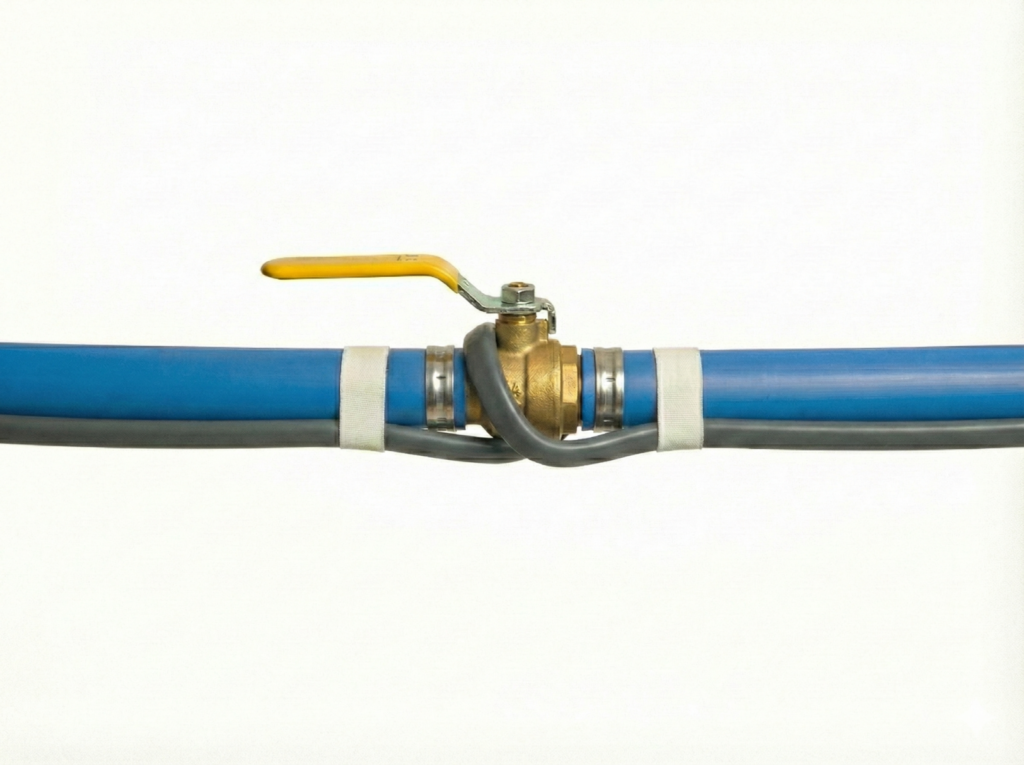

- Wrap valves with extra loops
- Insulate the entire assembly
- Plug into a GFCI outlet
Insulation is not optional. Heat tape without insulation is dramatically less effective.
Can Heat Tape Overlap on PEX
Yes, if and only if it is self regulating heat tape.
Self regulating cable remains well below dangerous surface temperatures even when overlapped. Constant wattage cable does not.
Common Installation Mistakes
• Skipping insulation
• Using duct tape
• Overlapping constant wattage cable
• Forgetting valves and fittings
• Running cable through walls
• Ignoring manufacturer instructions
Why Self Regulating Heat Tape Costs More and Why It Is Worth It
Constant wattage cable is cheaper to buy but more expensive to live with. It uses more electricity, fails sooner and cannot be repaired.
Self regulating cable adapts to conditions, lasts longer and protects your plumbing with far less risk. Most people who start with cheap cable eventually replace it with a better system after a failure.
Final Recommendation
PEX may tolerate freezing better than metal pipe, but it is not immune to damage. If pipes are exposed, heat tape is cheap insurance.
For long term reliability, safety and efficiency, self regulating heat tape is the right choice. Among available options, Heat Tape Pro and Pipe Freeze Pro offer the strongest combination of durability, control and warranty support.
If you are unsure which system fits your situation, HeatCableStore is here to help. We have spent decades solving freeze protection problems and we are happy to walk you through it.
